Projects

What kind of Approvals has C.A.P. done in the past?

I am adding this "Projects" page section to the blog so we can share some of the projects that CAP has successfully certified in the past. Maybe one of these is similar to your planned project. If so, take note that Certified Aeronautical Products has the experience and fortitude to help you through your project.

Aeronca 7AC-C-7BCM - 337, Cessna Style Exhaust Muffler System Retrofit

Beechcraft C90 King-Air: Powerplant Instrument Retrofit

Beechcraft F17-D Staggerwing: Add Fuel Tank & Jasco Alternator

Beechcraft 95 Travel Air: Mechanical Cowl Flap Conversion

Bellanca 14-19-3 Composite 4-blade MT Propeller upgrade

Boeing B17 Flying Fortress - 337 Exhaust System Modification

Boeing B17 Flying Fortress - 337 2-man Troop Seat Installation

Cessna 172 Skyhawk - 337 60-Amp Alternator installation

Cessna 177 Cardinal - 337 Cowling Exit Air Ramp & Wheel Pants

Cessna 200 Series - Multiple STC, Propeller Upgrade

Cessna L19 (305A) Bird Dog - 337 Field Approval, Rocket Launchers (inoperable)

Cessna L19 (305A) Bird Dog - 337 Field Approval, Remote Mount Oil Cooler

Cessna 310Q: 337 Field Approval, TCM IO-470-V/-VO Engine Model Substitution

Luscombe 8E: 337, Propeller Model Substitution

Mooney M20: 337, Modernize Powerplant Instruments

Piper PA-15 Vagabond - 337 Field Approval, Remove Nose Tank & Add Two 12 Gallon Wing Tanks

Piper PA-23 Cherokee: 337, Wing Spar Splice Repair

Piper PA-25-250 - One-time STC, Fuel Tank Installation

Piper PA-32-300Cherokee 6: 337 Field Approval, Lyc. IO-540-K1B5 Engine Model Substitution

Socata TB-20/21 - Multiple STC, VCS Air Conditioner

Taylorcraft BC-65 - AMOC Fuel shut-off safety device

Taylorcraft BC12-D: Longeron Repairs

Taylorcraft BC12-D: Metal Propeller Model Substitution

Taylorcraft BC12-D: O-200A Engine Model Substitution

Taylorcraft DCO-65: Add Two 5-gallon Fuel Cells

Taylorcraft DCO-65: Exhaust Substitution

Taylorcraft DCO-65: Alternator & Battery Installation

Waco RNF Open Biplane: 165 hp Warner Engine Substitution

Waco ZQC-6 Custom Cabin - 337 Field Approval, Cleveland Disk Brake Retrofit

STC # SA02164LA

Certified Aeronautical Products offers the following STC Paperwork for sale:

STC # SA02164LA: 85 - 90 - or - 100 HORSEPOWER!

Taylorcraft L2/DC(O)-65 Engine Upgrade

Continental Engine - C85, C90, or O200A

CLICK HERE FOR INFORMATION

---------------------------------------------------
Contact:

Certified Aeronautical Products

2457 Texas Highway 236

Moody, TX 76557

phone: (254) 715-4773

email: barnstmr@aol.com

Taylorcraft BC & BC12D Engine Upgrade

Certified Aeronautical Products offers the following STC paperwork for sale:

STC # SA1-210: 85 HORSEPOWER!

PLEASE BEAR WITH US WHILE

THIS PAGE IS UNDER CONSTRUCTION.

OUR FORMS ARE OUT OF DATE.

THEY ARE BEING REVISED.

Taylorcraft BC / BC12D Engine Upgrade

Optional Gross Weight Increase

(Formerly known as the Gilberti/Harer STC)

CONFIGURATION A.

Conversion to BC12D-85

w/ C85-8 Cont. Engine

- Short Engine Mount

- Retain Original Gross Weight, or

- Increase Gross Weight to 1280 lb

CONFIGURATION B.

Conversion to BC12D-4-85 or Model 19

w/ C85-12 Cont. Engine.

- Long Engine Mount

- Retain Original Gross Weight, or

- Increase Gross Weight to 1500 lb.

------------------------------------------------------------

 FOR PRICE DETAILS, CLICK ON THE "CATALOG" TAB ABOVE TO VIEW OUR CATALOG.

------------------------------------------------------------

TO ORDER: via snail mail

We need the following information to process your order.
Send Check or M.O to our address below.

• Name of Aircraft Owner
• Address (Owner)
• Address (for shipment of STC paperwork - if different)
• Contact telephone
• E-mail address
• Model # of Aircraft
• Serial # of Aircraft
• Indicate method of payment: PayPal / Check / Money Order

TO EXPEDITE ORDER: via internet

Email us the above information. Request a PayPal invoice.  We will turn around and send you an invoice with several optional methods:

• Electronic Check
• Credit Card
• Pay with funds from your PayPal account

---------------------------------------------------

Contact:

Certified Aeronautical Products

2457 Texas Highway 236

Moody, TX 76557

phone: (254) 715-4773

email: barnstmr@aol.com

For Sale: Travel Air Fuselage Frame / RH Upper Wing

Poor Condition - Pattern Reference Only

YOU Pick Up - No Shipping - Located in Central TX

Call for details.

Engine mount in photo not included.



Click on Images to Enlarge





This fuselage salvaged from field on the late Sid Hess Airfield. This is thought to be the discarded fuselage frame from N434N, for which Sid built a new fuselage frame.

Make Offer - Goes to Highest Bidder



Call 254-715-4773 or email barnstmr@aol.com



------------------------------------------------------------------

Also... RH UPPER WING FOR TRAVEL AIR 2000 Good for Pattern. Some metal fittings

YOU Pick up - No Shipping - Located in Le Sueur Minnesota


Make Offer - Goes to Highest Bidder

Call 254-715-4773 or email barnstmr@aol.com

DER Approved Data

Through the magic of PayPal, let C.A.P. provide a convenient and quick way to address your DER approval needs. A typical simple DER approval of your data usually costs around $250.00, depending on the complexity and the engineering discipline(s) involved.

C.A.P. supports all DER disciplines as follows.
Structures - Powerplant Installation - Mechanical systems & Equipment - Electrical systems & Equipment - Engines - Flight Analyst - Flight Test Pilot - Acoustics

Email us today at barnstmr@aol.com to request your DER approval. We'll send you an invoice via PayPal for Major Repairs and/or Major Alterations. This method is not always possible for complex or unusual design changes. So if you're not suer give us a call first at 254-715-4773 and describe your needs. If we agree this can be a simple approval and the data is available or simple to produce, it is easy... just scroll down and order your FAA-DER approval form 8110-3.

With this approval in hand, your A&P/I.A. will have what he needs to execute the FAA form 337 for fast and efficient return-to-service.

Piper Vagabond Wing Fuel Tank Conversion

FAA-DER Approved Paperwork FOR SALE

Piper PA-15 & PA17 Vagabond
Two 12-gallon Wing Fuel Tanks
Remove Fuselage Nose Tank
Single Selector Valve (Andair)


FAA-DER Approved Drawing to be used in support of Major Alteration via 337 return-to-service by your A&P/I.A. sign-off.

Drawing includes instructions for fuel flow test and unusable fuel determination.

Select Airplane Model

PA-15 Wing Tanks (no nose) $375.00 PA-17 Wing Tanks (no nose) $375.00 Other (Call to inquire) $0.00

Engine model

Airplane s/n

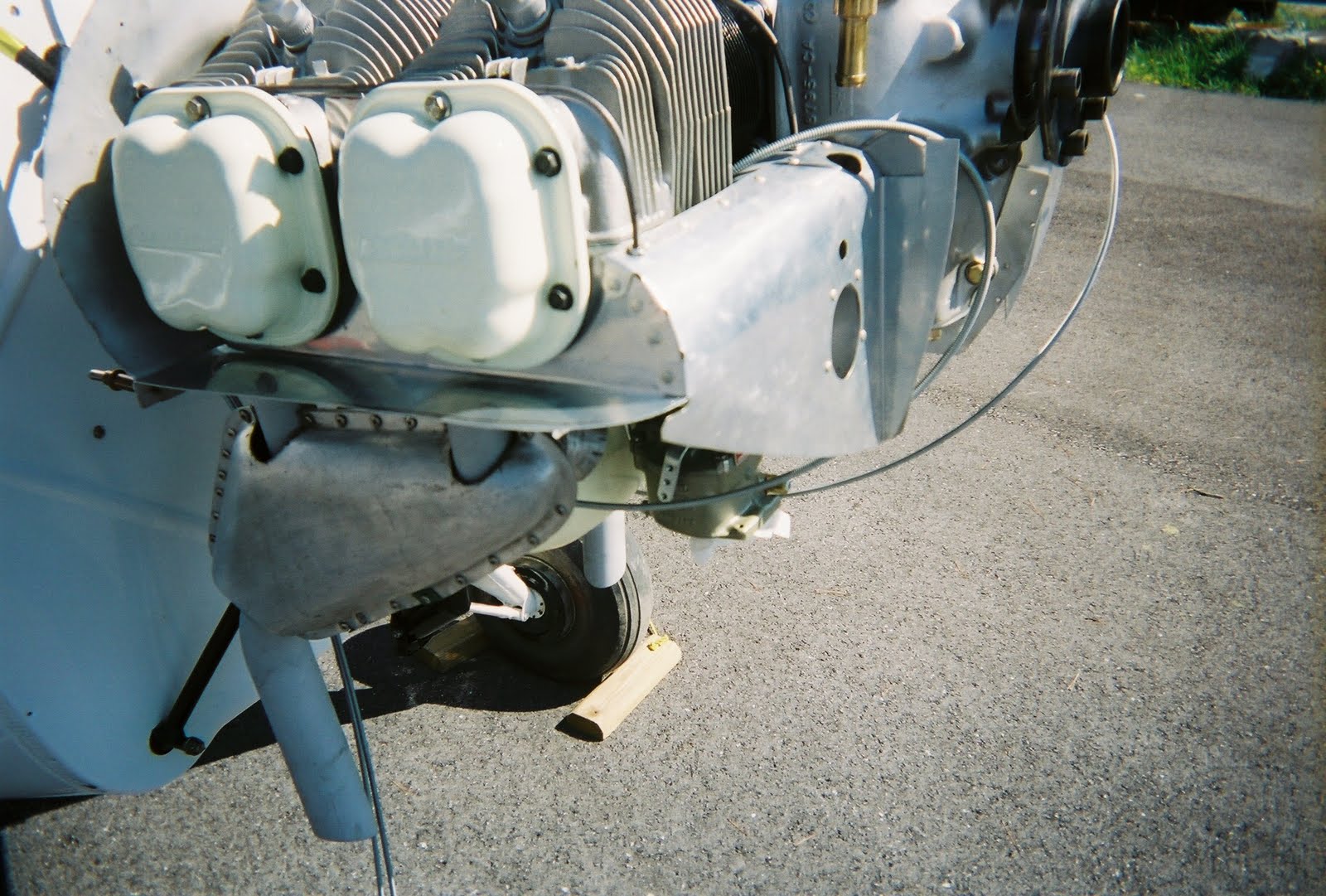

Taylorcraft Exhaust Conversion

Taylorcraft BC-Series or DC-Series
Conversion to Dual Exhaust (Luscombe 8E-style)
Comes with installation drawings and DER 8110-3 Approval Paperwork to be referenced on 337.


All parts are available as FAA-PMA parts from Wag-Aero, Univair, or other sources.
Improves maintainability of exhaust and improves carburetor heater / cabin heater performance.

No cross-over tube behind engine.


Lower oil temperature due to less radiant heat impingement on oil reservoir.

Makes for more room at rear of engine for alternator or generator installation (with C85, C90, O200).

My Airplane is a...

Taylorcraft BC-series $250.00 Taylorcraft DC-series $250.00 Taylorcraft 19 / F19 $250.00 Other - call for quote $0.00

Airplane/Engine model & s/n
